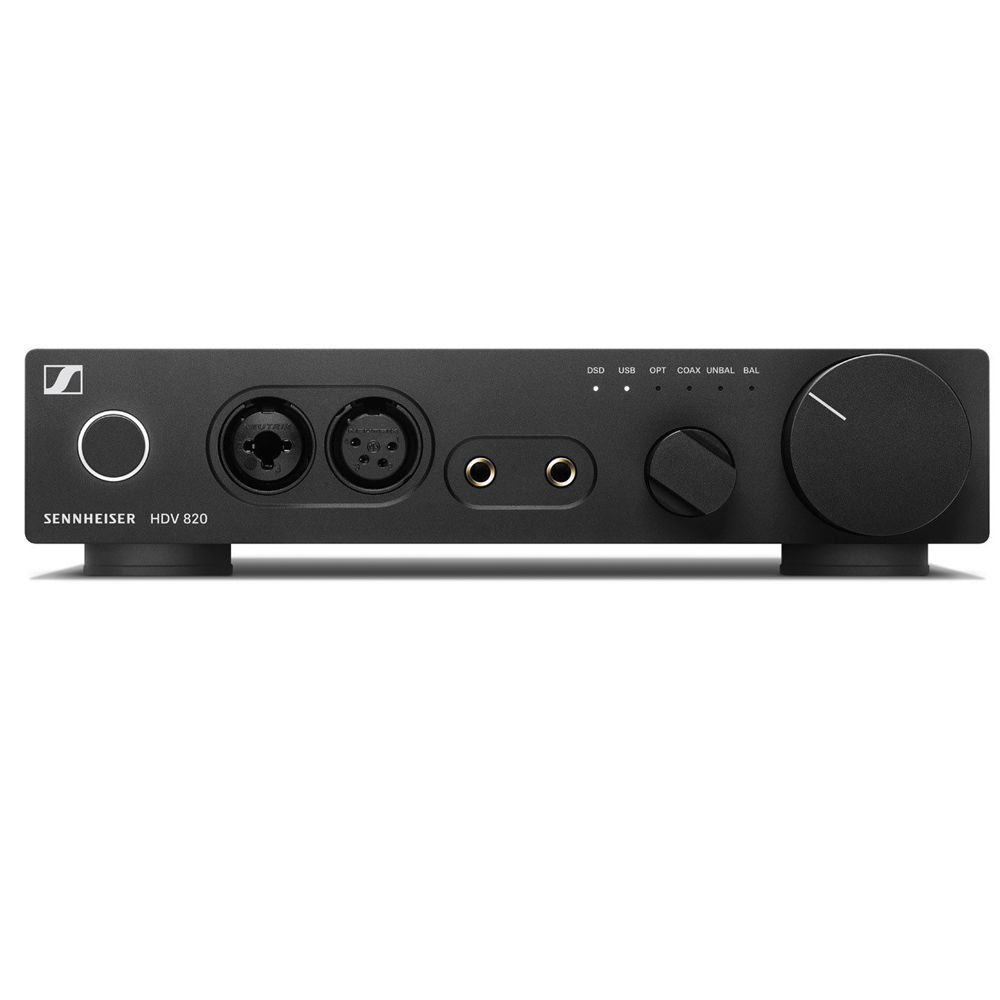

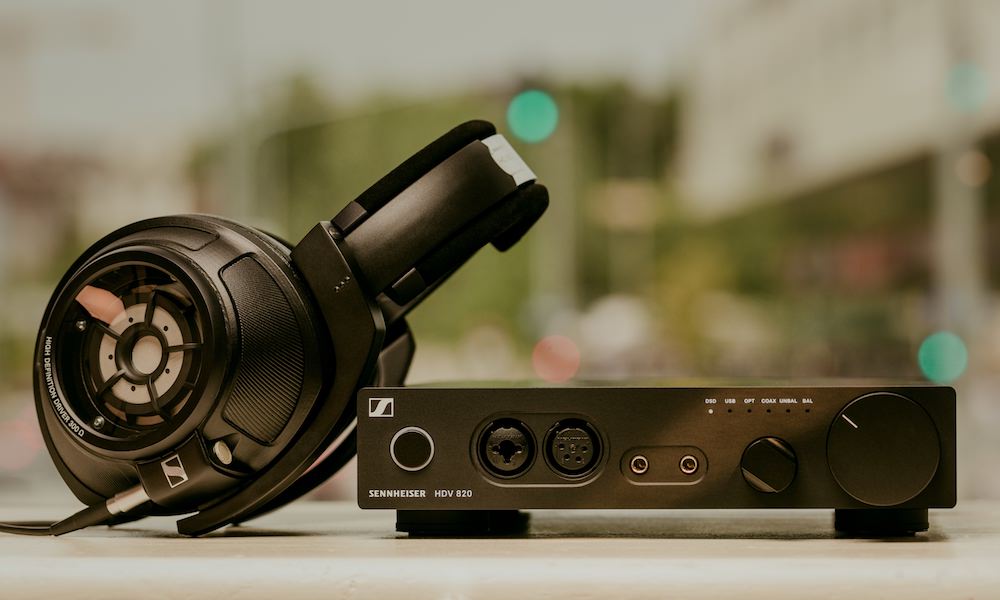

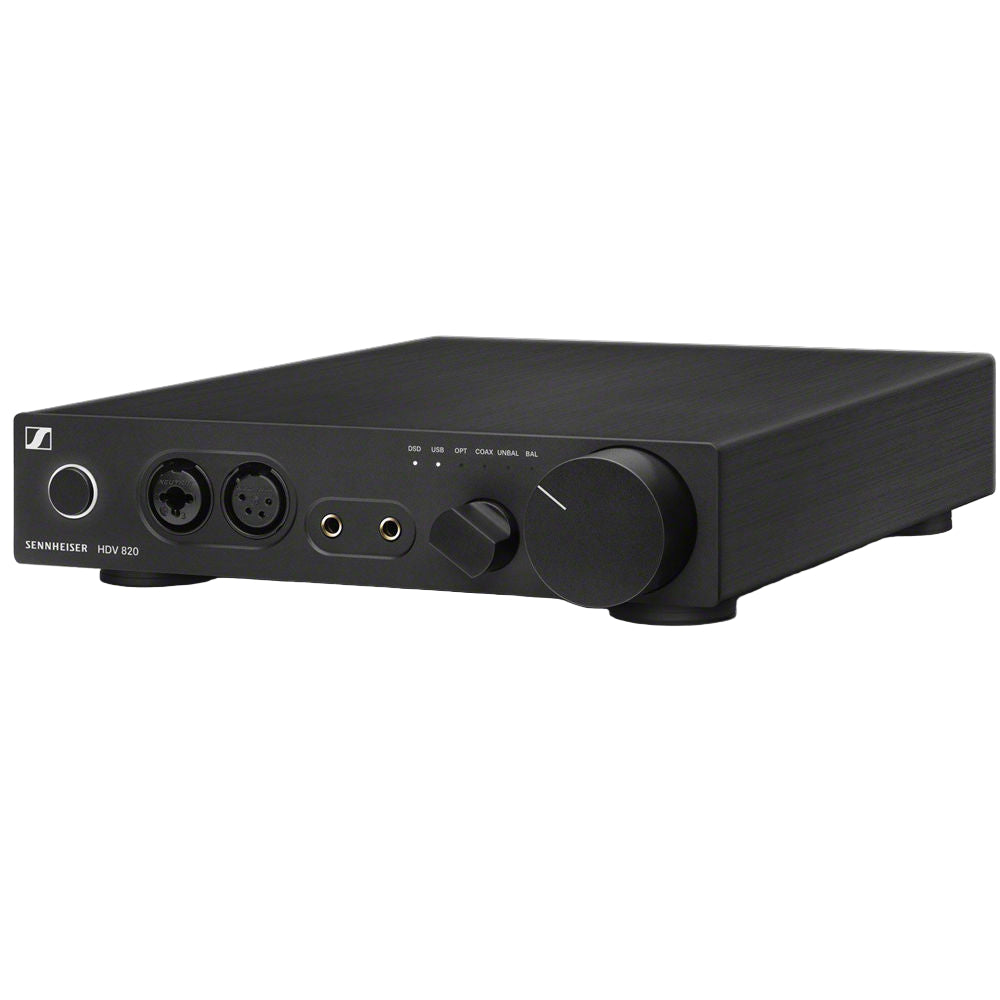

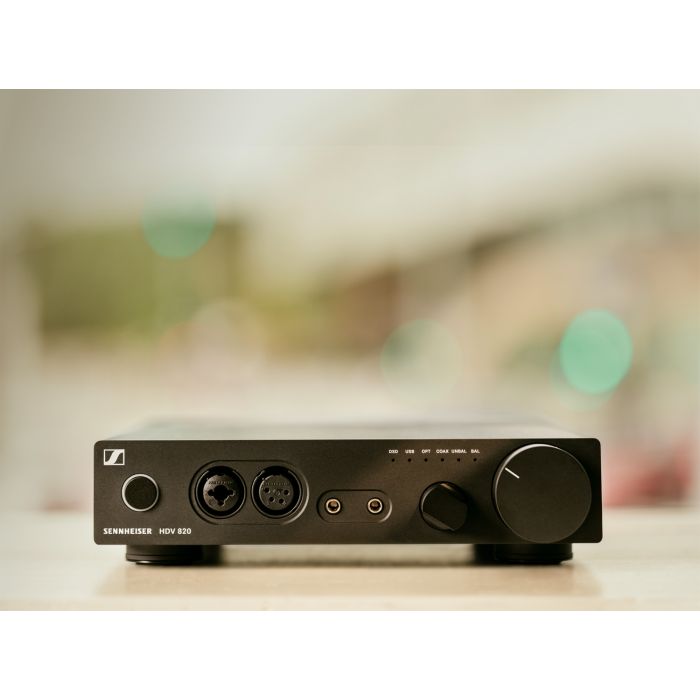

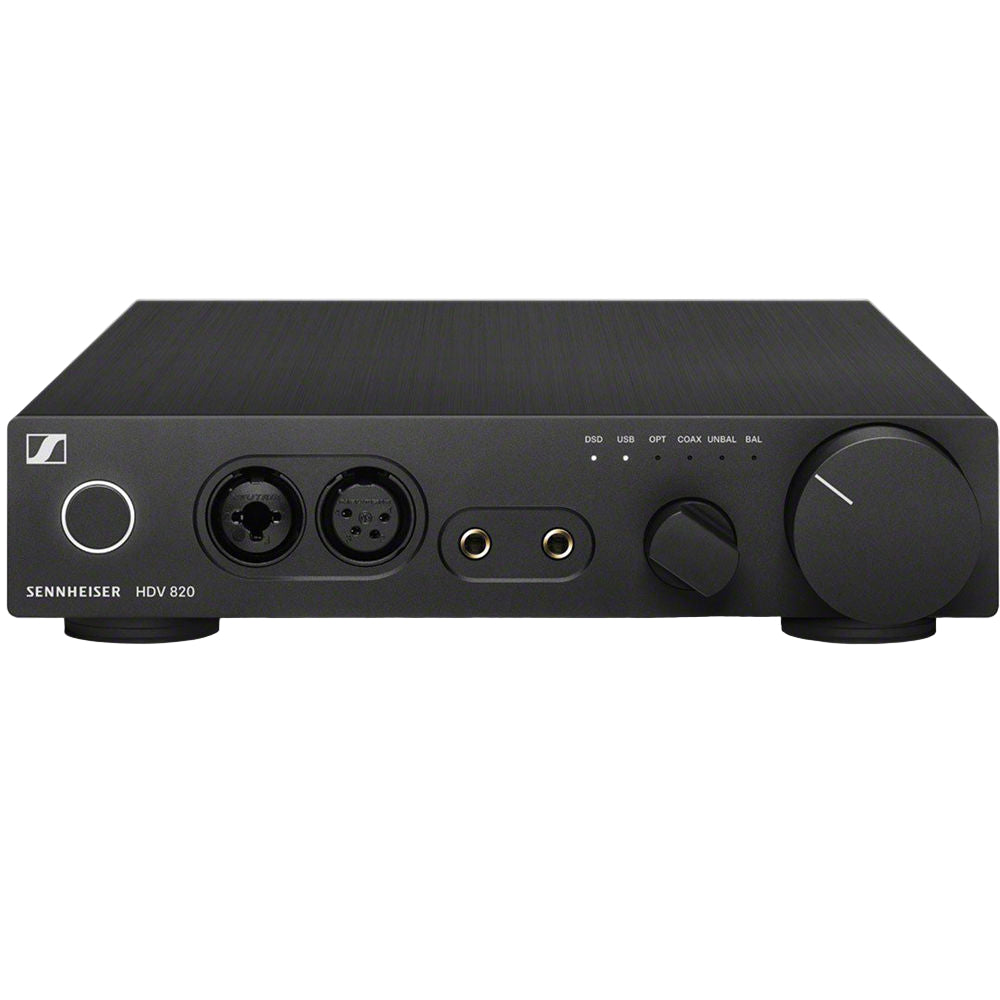

Sennheiser HDV 820 EU – Reference DAC & Headphone Amplifier

The HDV 820 EU unites a high-end ESS SABRE DAC with a powerful headphone amplifier, offering a seamless, lower-noise digital-to-analog path for discerning listeners. With multiple input/output options and ultra-low distortion, it’s ideal for pairing with audiophile headphones and expanding into a full analogue system.

Key Features

• ESS SABRE32 DAC (ES9028PRO): Supports PCM up to 32-bit / 384 kHz and native DSD256 playback

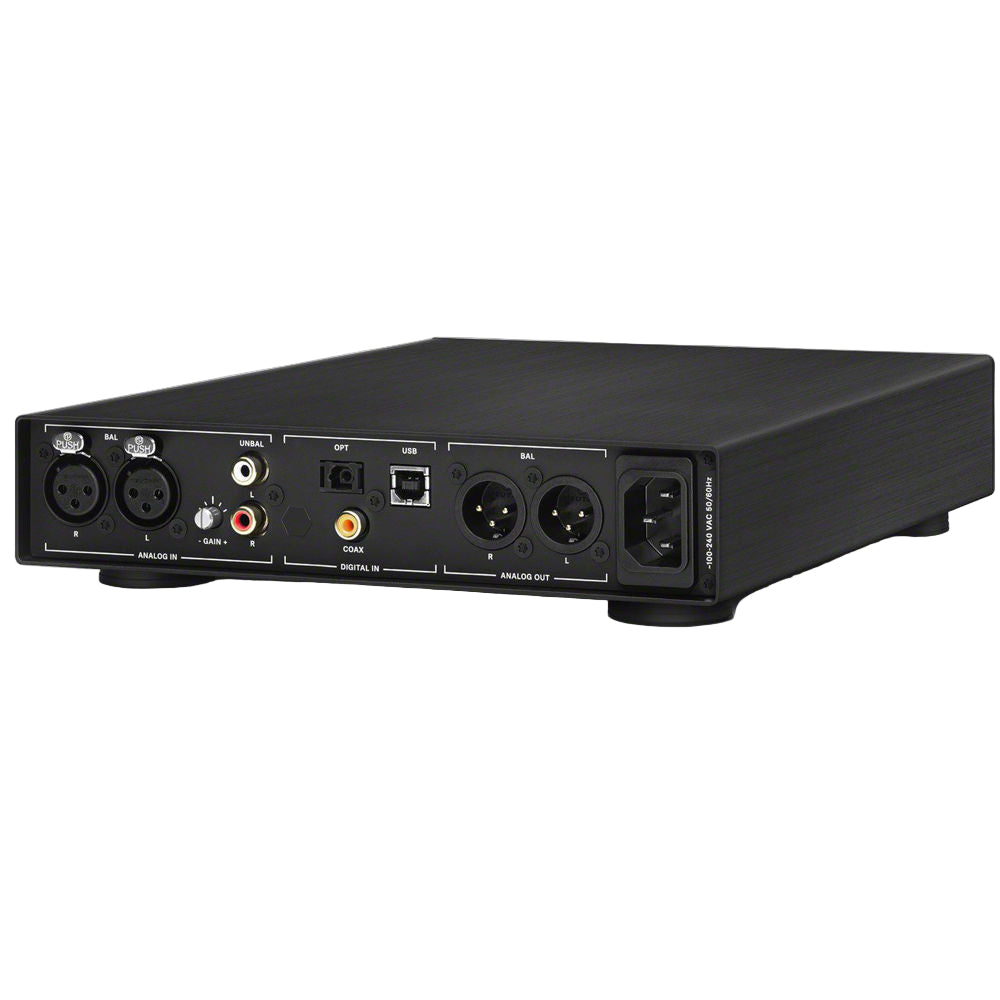

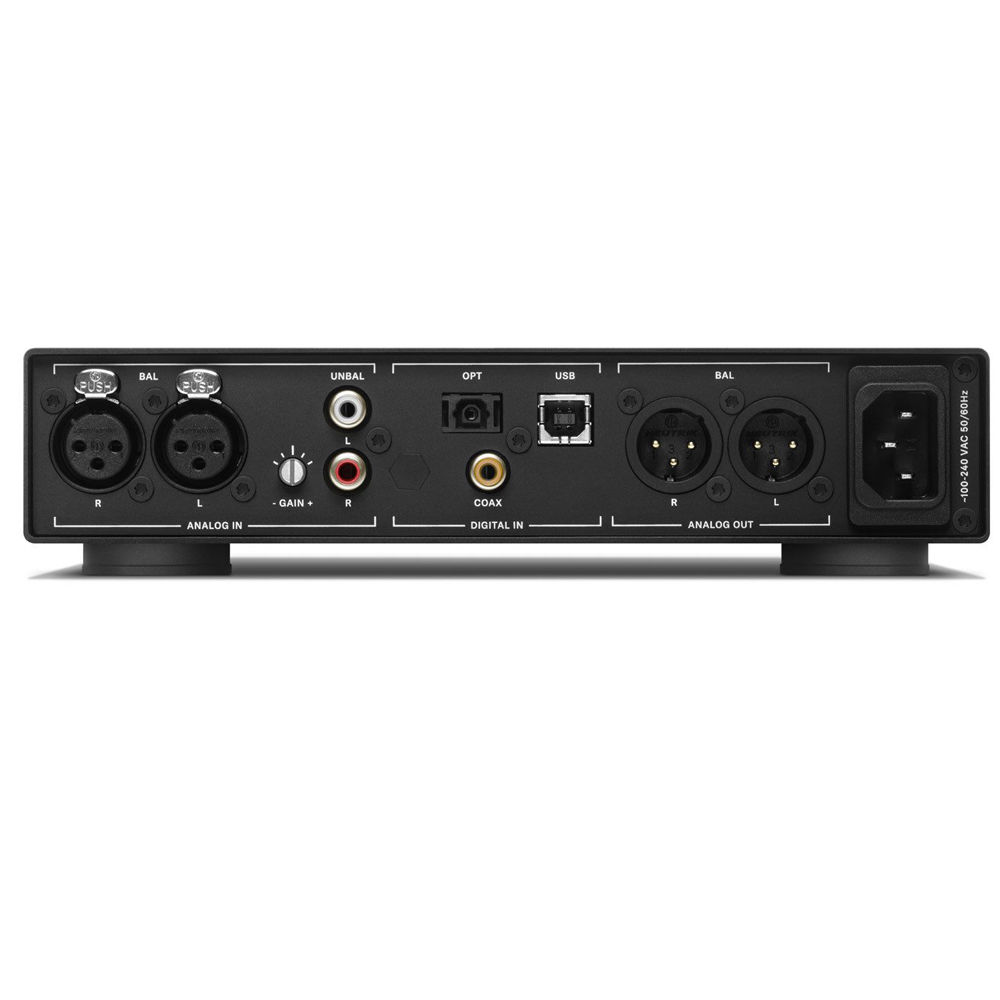

• Wide input versatility: USB-B, optical (TOSLINK), coaxial + balanced XLR and unbalanced RCA analogue inputs
• Comprehensive headphone outputs: Combo XLR3 / ¼" jack, XLR4 balanced, and dual 4.4 mm Pentaconn connectors
• Balanced outputs & preamp mode: XLR line outputs let you use it as a source for powered monitors or amplifiers
• Low distortion & wide bandwidth: THD+N below 0.001 %, frequency response from <10 Hz to >100 kHz

Customer Benefits

The HDV 820 EU gives you a high-fidelity signal chain from digital or analog sources directly to your headphones or downstream amplifier. With multiple outputs and preamp capabilities, it reduces the need for extra gear and ensures your headphones perform at their best.

Quick Specs

• Frequency response: <10 Hz to >100 kHz
• THD+N: < 0.001 %
• Dynamic range: > 115 dB (at 600 Ω, A-weighted)
• Gain (Unbalanced → XLR-4): 14 / 22 / 30 / 38 / 46 dB selectable
• Gain (Balanced input → XLR-4): Fixed 16 dB
• Power output (typical): ~2.76 W into 32 Ω; ~960 mW into 300 Ω
• Inputs: USB-B, Optical, Coaxial, RCA, XLR
• Outputs: XLR3, XLR4, ¼" jack, dual 4.4 mm, XLR line out
• Dimensions (W × H × D): 224 × 44 × 306 mm
• Weight: ~2.25 kg

What’s in the Box

• Sennheiser HDV 820 unit
• IEC power cable

• Quick start guide & safety instructions


Use Cases / Ideal For

Perfect for audiophiles who want a combined DAC, headphone amp, and preamp in a single box. It’s especially effective with high-end, high-impedance headphones, but also offers the flexibility to serve active speakers or power amplifiers.

Compatibility

Works with macOS (class-compliant) and Windows (driver required). Accepts digital and analogue sources. Outputs to balanced and unbalanced headphone connections. Its XLR line outputs let it drive external amplification or active monitors.

Pros & Cons

✅ Pros:

• All-in-one DAC, headphone amplifier, and preamp
• High power and detailed performance across loads
• Rich connectivity and routing options
• Extremely low distortion and wide frequency extension

⚠️ Cons:

• No visual display of sample rate or format
• Heavy and sizable — needs sturdy placement
• Uses quite a bit of power under load

The Sennheiser HDV 820 EU is a powerful, versatile amplifier that bridges high-resolution digital sources and premium headphone performance, while also offering output options for broader hi-fi integration.
