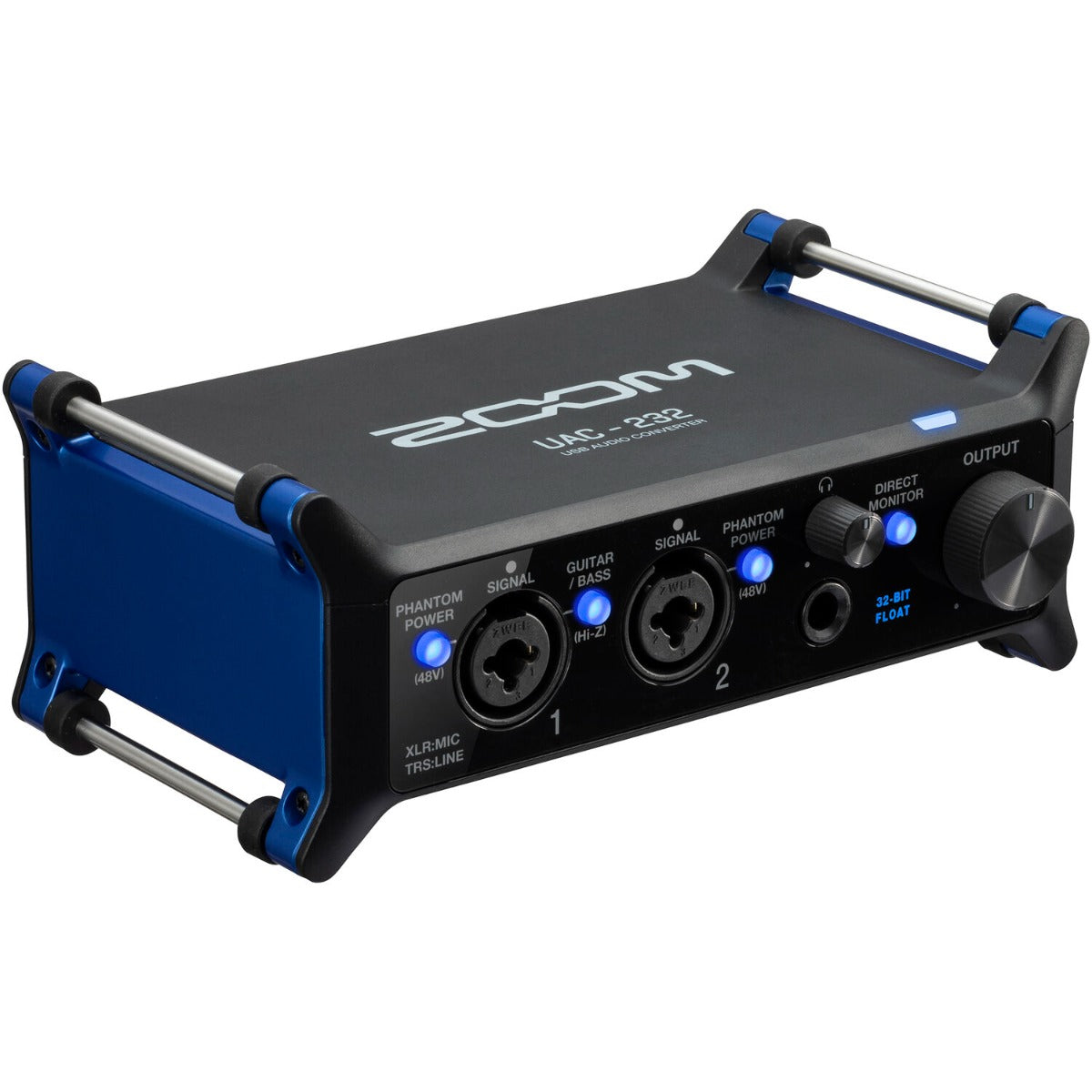

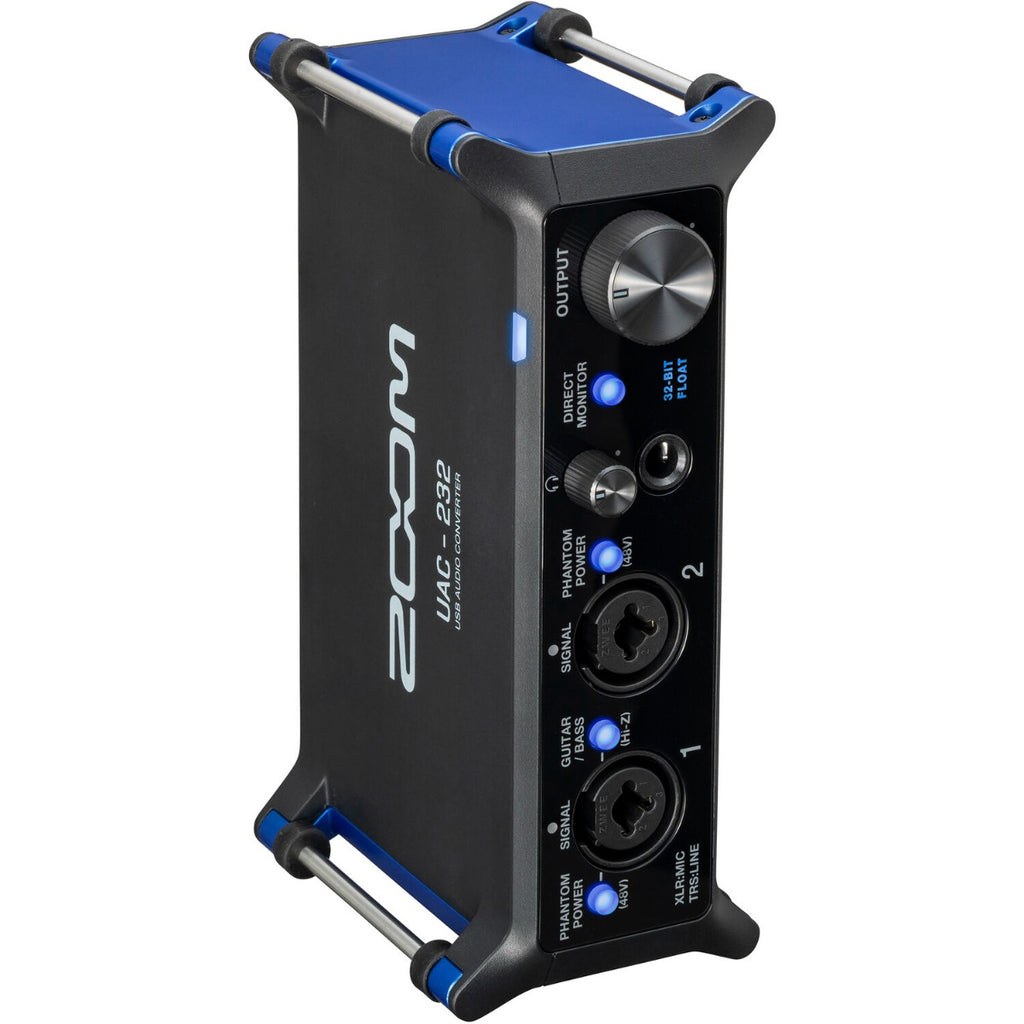

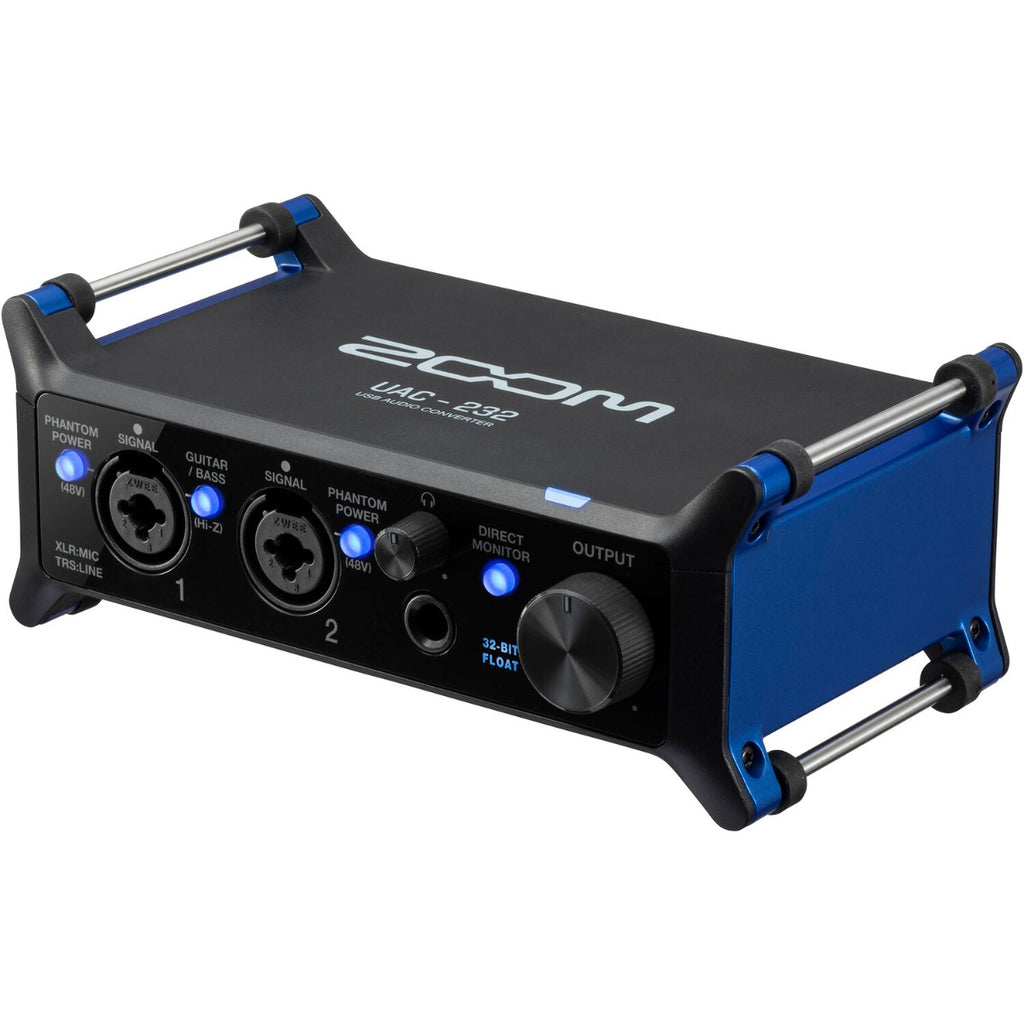

Zoom UAC-232 – 32-Bit Float USB Audio Interface

The Zoom UAC-232 is a next-generation USB audio converter designed for creators who want worry-free, clip-free recording. Its dual AD converters and 32-bit float technology handle everything from whisper-quiet vocals to loud bursts—without needing to tweak gain. With pro-grade mic preamps, loopback support, and flexible routing via Mix Control, it’s ideal for streaming, recording, and content creation—available now at Soundium.

Key Features

• 32-bit float recording: Capture full dynamic range without clipping or distortion
• Dual Zoom F-series preamps: Clean, low-noise mic preamps shared with Zoom’s F-recorders

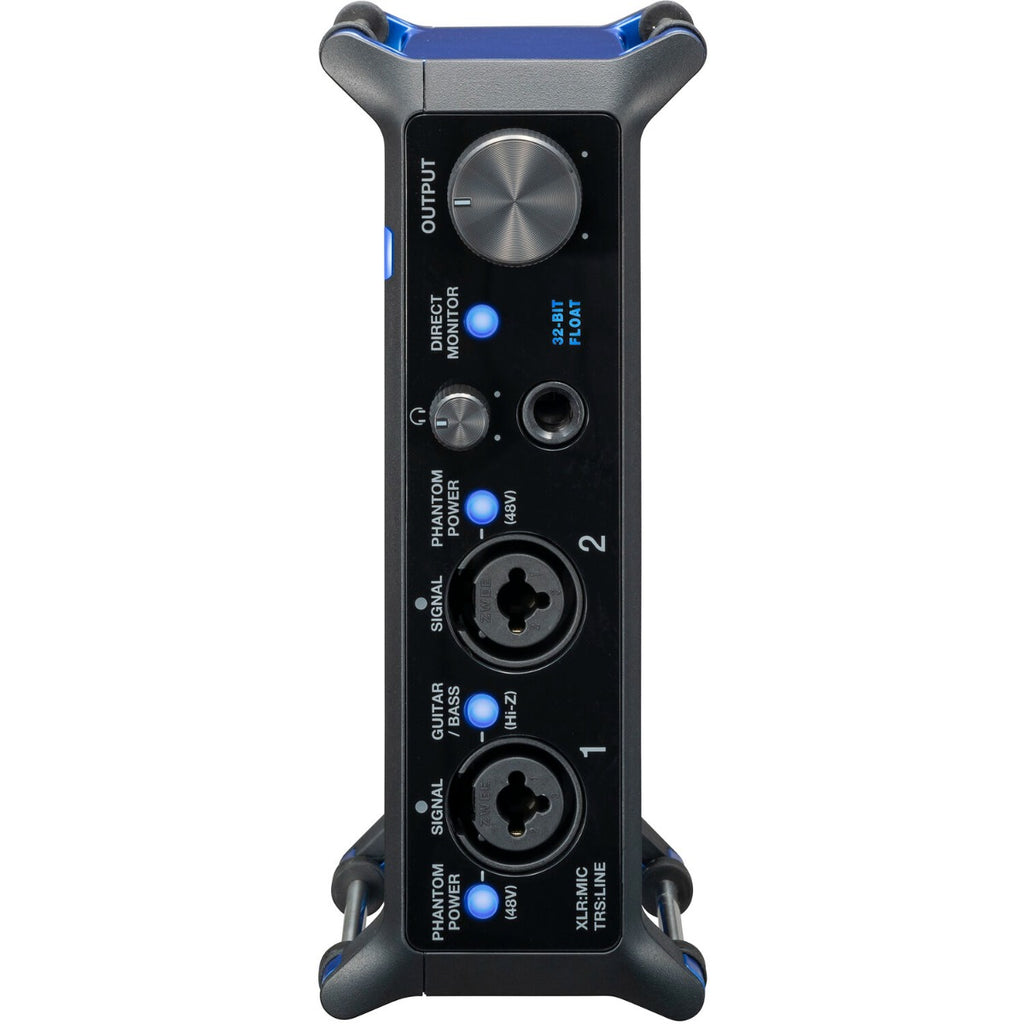

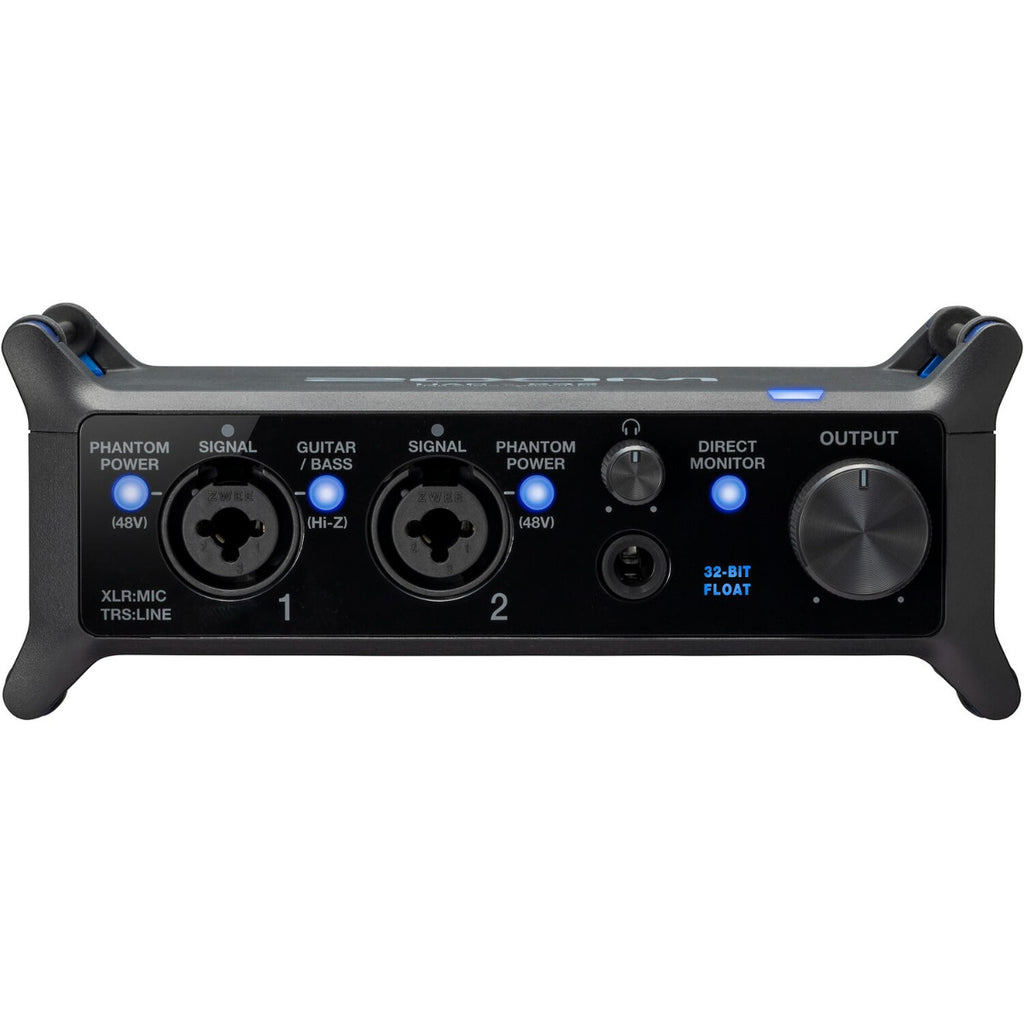

• 2 combo XLR/TRS inputs: Accept mic, line, or instrument signals with +48V phantom and Hi-Z switching
• Loopback & modes: Streaming mode blends inputs with playback, Loopback routing for broadcast setups
• Mix Control software: Configure I/O routing, monitor panning, gain, and mode switching
• Latency-free monitoring: Direct Monitor switch sends input to headphones instantly
• High-output headphone amp: 100 mW drive for demanding headphones

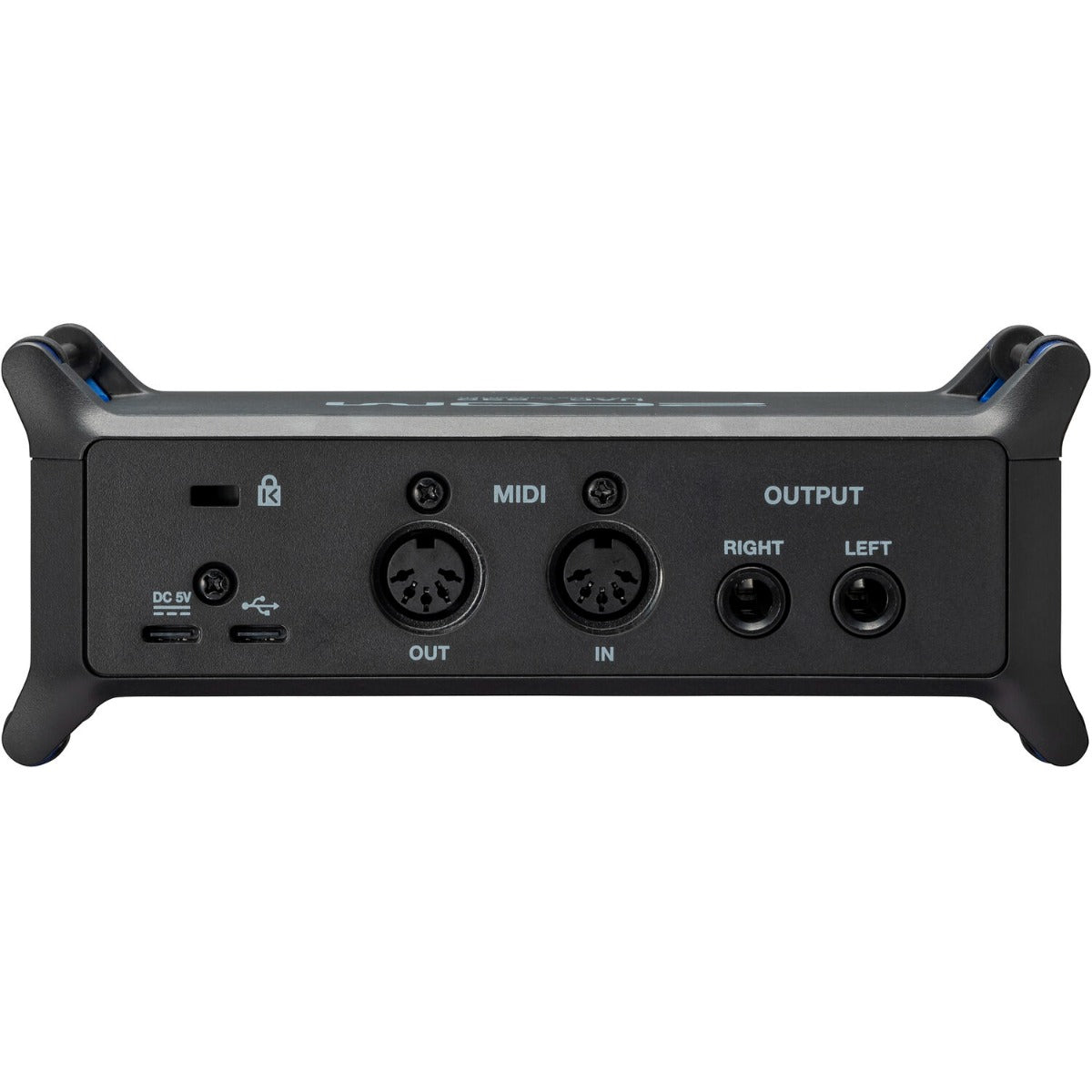

• MIDI I/O: 5-pin DIN in and out for external controllers or synths

Customer Benefits

With UAC-232’s 32-bit float architecture, you no longer need to worry about clipping during spontaneous performances or dynamic recordings. The clean preamps, loopback support, and flexible Mix Control routing make livestreams, podcasts, and studio sessions easier and more reliable. Whether you're streaming, recording, or producing, the UAC-232 simplifies your workflow and preserves your sound.

Quick Specs

• I/O: 2 inputs / 2 outputs (analog) + headphones + MIDI I/O
• Inputs: 2 × XLR/TRS combo (mic/line/Hi-Z), +48V phantom, Hi-Z switch
• Outputs: 2 × TRS balanced line outs, headphone out
• Recording resolution: Up to 32-bit float / 192 kHz
• Headphone output: 100 mW per side at 32 Ω
• Connectivity: USB-C (bus-powered) with optional external power for iOS via Lightning
• Dimensions: 164 × 105.5 × 65 mm
• Weight: 355 g

What’s in the Box

• Zoom UAC-232 USB audio interface
• USB-C cable
• Flat cable fasteners (x2)
• Quick start guide

Use Cases / Ideal For

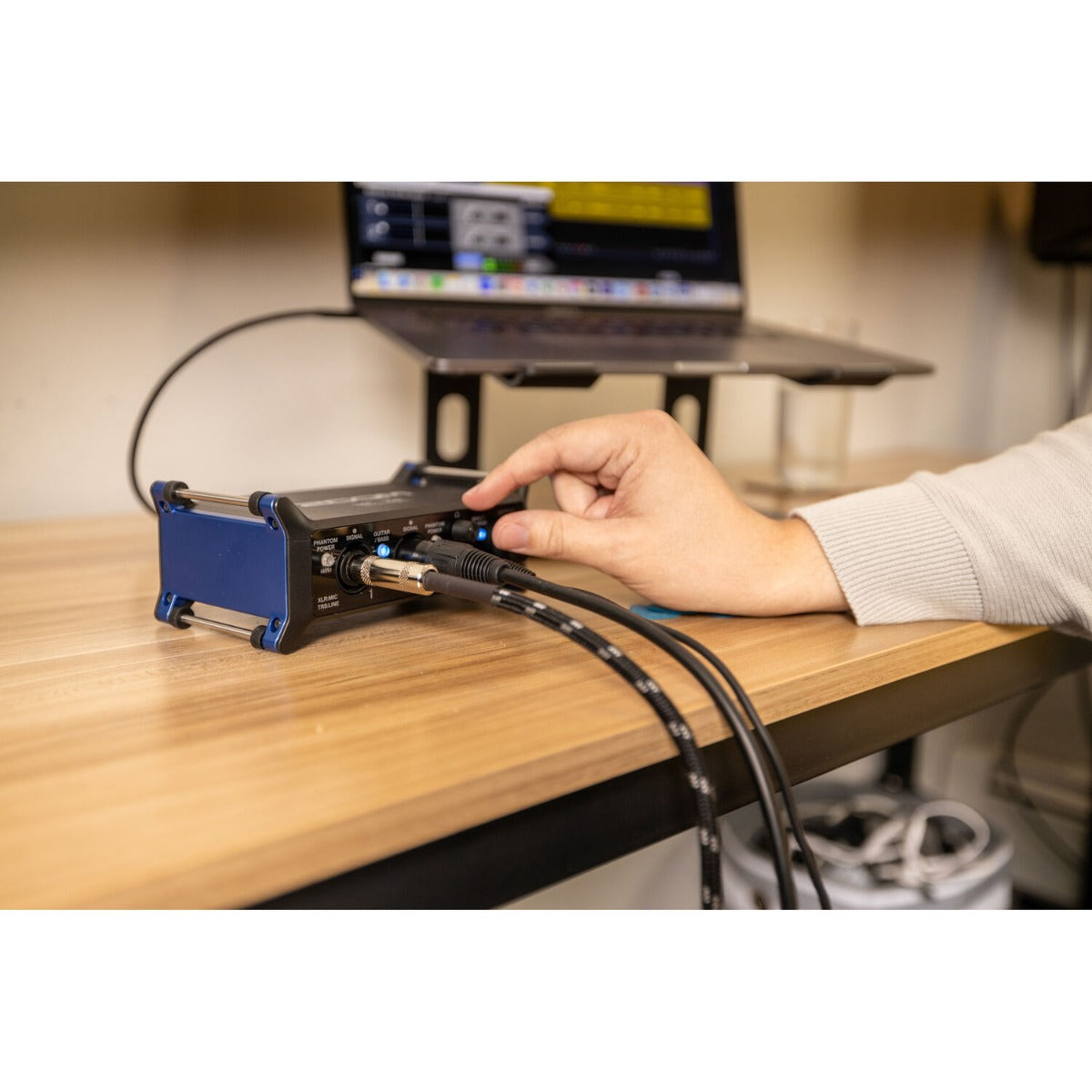

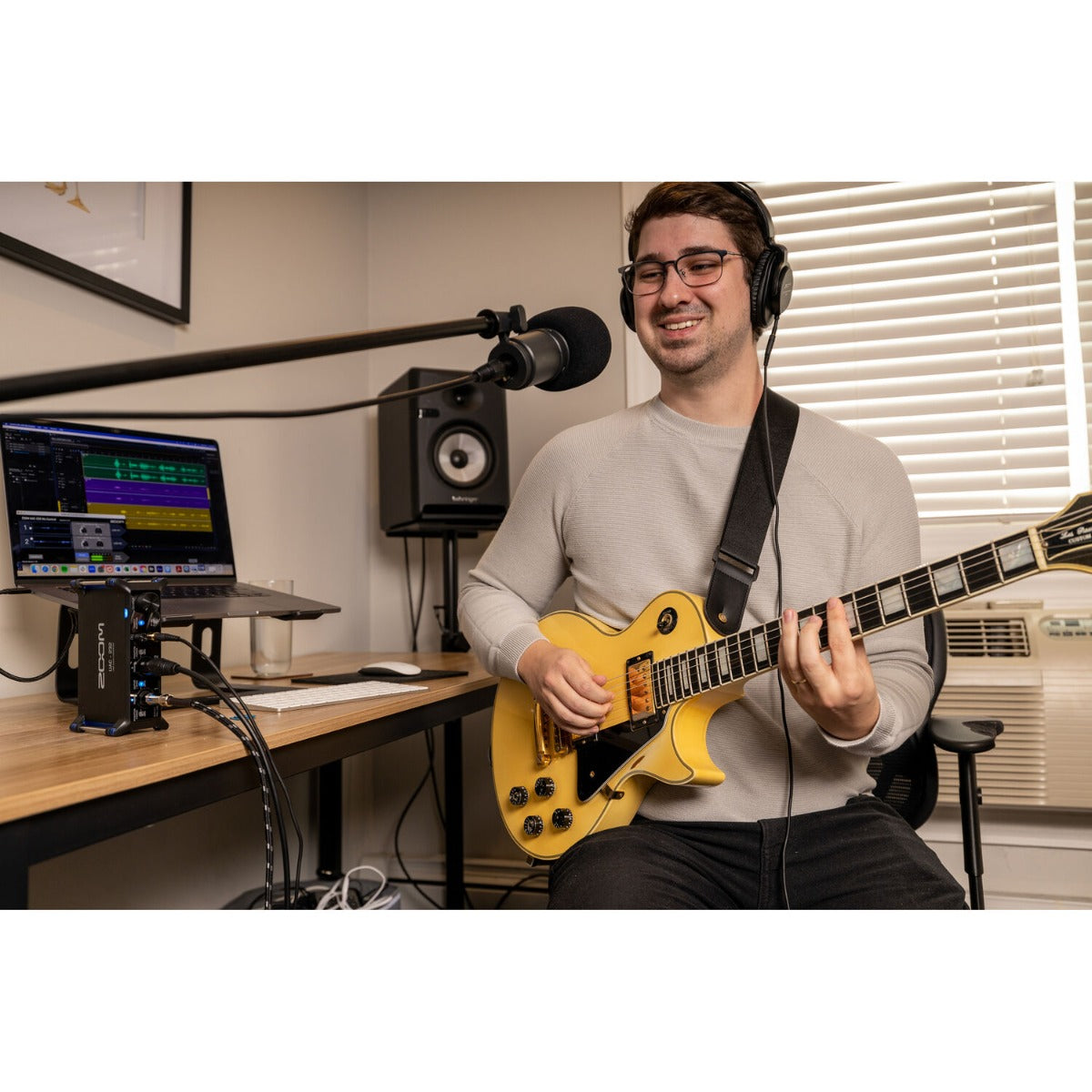

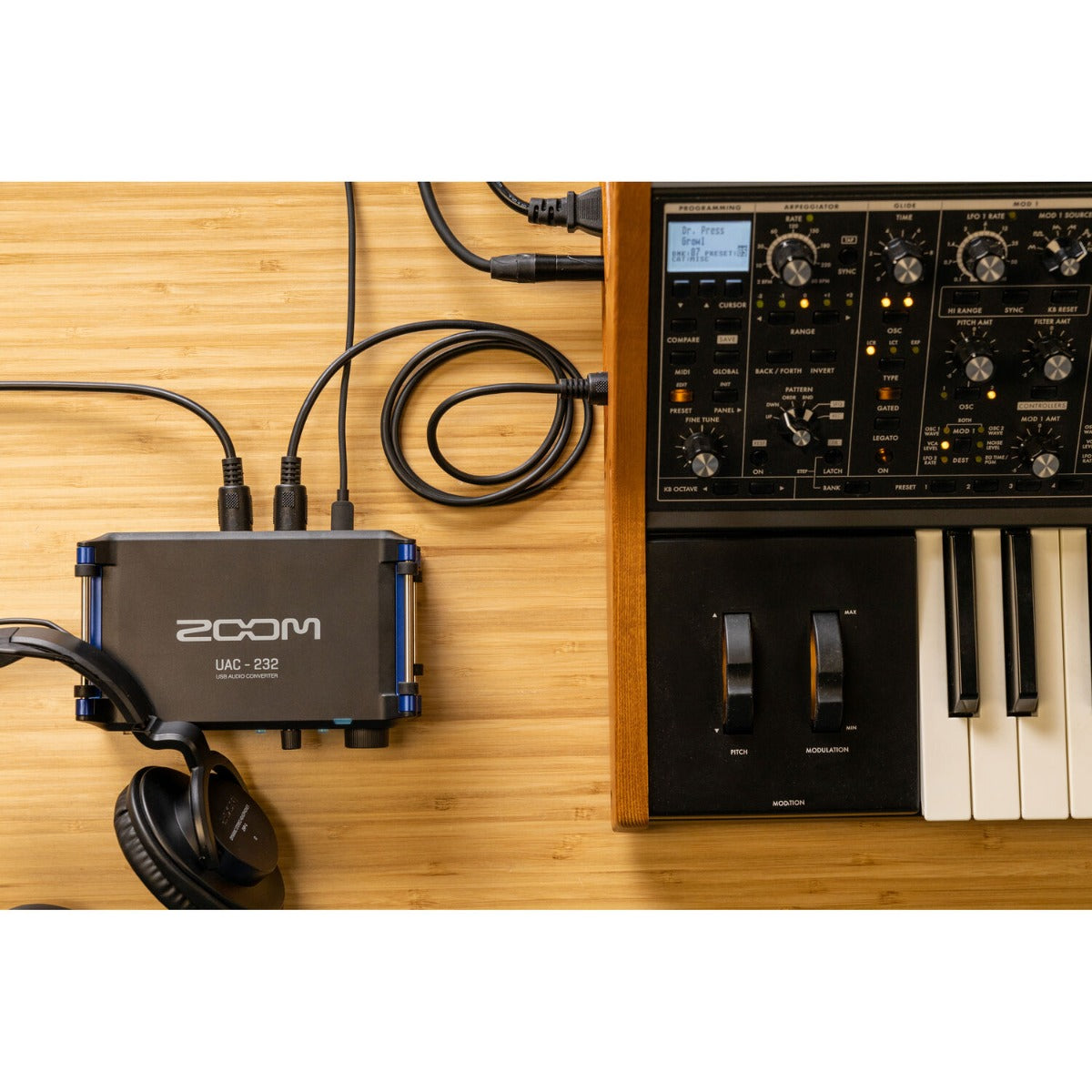

Ideal for podcasters, live streamers, singer-songwriters, and content creators who want intuitive, clip-free recording and routing. Perfect for home studios, livestream setups, or mobile recording rigs where reliability and flexibility matter.

Compatibility

Compatible with macOS and Windows via USB-C. Works as 24-bit on iOS. Integrates with common DAWs (Pro Tools, Ableton Live, OBS, etc.). Requires Zoom’s Mix Control app for full routing and loopback features. Not currently supported on Android.

Pros & Cons

✅ Pros:

• No need to set gain thanks to 32-bit float
• Clean and powerful preamps shared with Zoom’s F-series
• Loopback and streaming modes built-in
• Direct monitoring with zero latency
• Compact, bus-powered design with optional power for iOS

⚠️ Cons:

• 32-bit float doesn’t protect analog saturation; extreme input levels can still clip the preamp stage
• Mix Control is required to control gain and routing—the hardware has limited knobs
• No Android support currently

The Zoom UAC-232 moves USB audio interface technology forward with 32-bit float recording, pro preamps, and smart routing for creators who need versatility and reliability. For clipping-free performance and streamlined workflow, this is a standout choice.
